Mass Production Test Handler for MEMS

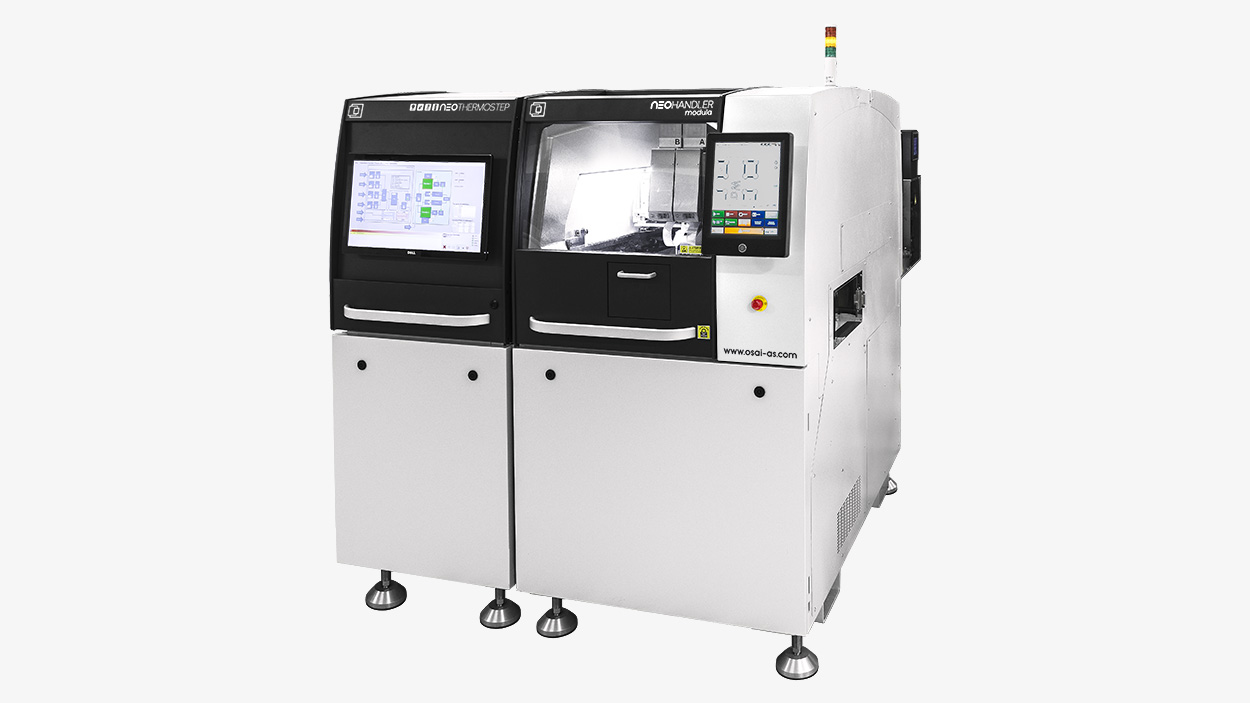

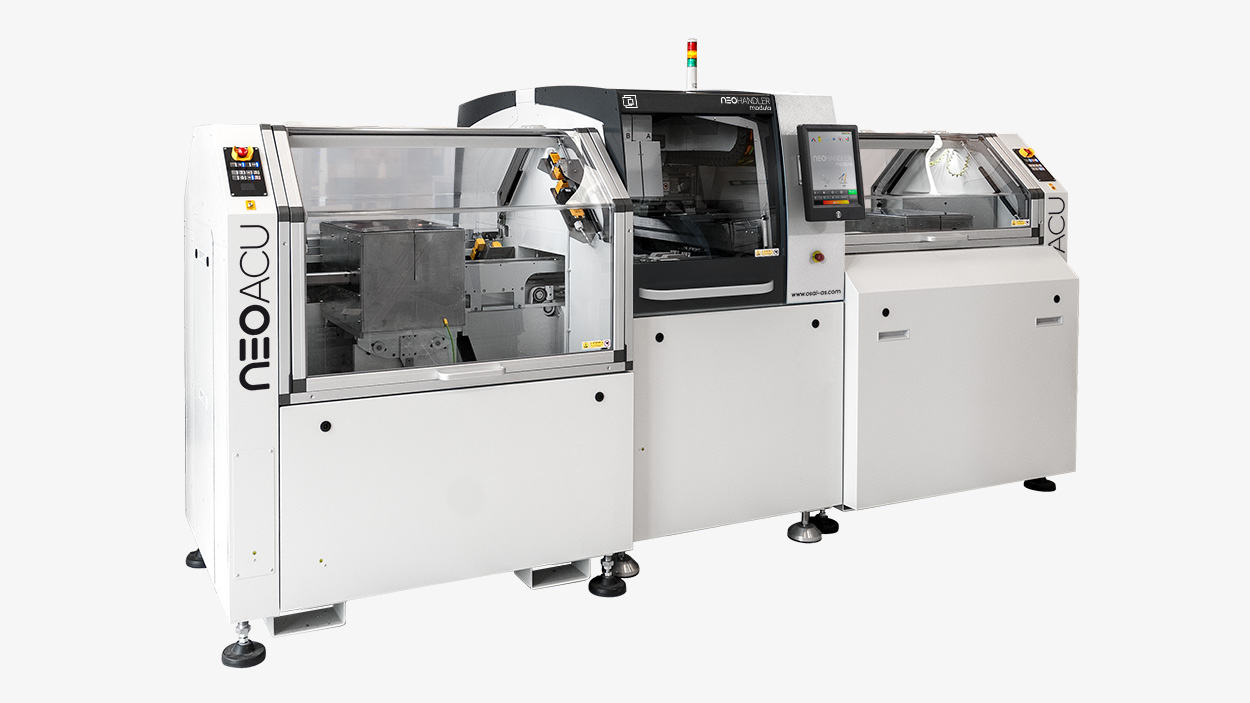

Neo Handler is the first class OSAI equipment for testing Semiconductor MEMS Sensors components. The small footprint (900 x 1600mm) and a scalable architecture allow to dramatically reduce the cost of test.

High flexibility, in addition to several combination of I/O feeding (from Direct die to tube feeding), offer an hi-end test handler solution with low operative and investment costs.

The wide range of scalability features offered in OSAI equipment configuration range:

  • Multi sites test socket (up to 140 sites)
  • Multi sites pick up tools (up to 35 sites)
  • Stimuli units (Pressure, GAS, Temperature, Humidity, Microphones, Magnetic, Inertial)

Entirely developed by OSAI, Neo Handler can test several MEMS sensors types and geometries.

Suitable for: Mems microphones, Mems speaker, voice coil micro-speakers, dual armature speakers, optical microphones

Input/output media: Jedec trays, Tape and reel, direct die feeding

Bin Formats: Bin boxes, 4” waffle trays

Test Handler capability: Up to 35 indipendent sites

Per picker handling technology: ≤ 1/10K jam rate

Compact footprint: Low index time, High throughput

Acoustic stimuli: Per site Individual stimuli unit, Modular test socket architecture, High SNR test capability (up to 80dB)

Production traceability feature available

Suitable for: Geomagnetic sensors, angular sensors, hall effect sensors, speed sensors

Input/output media: Jedec trays, Tape and reel

Bin Formats: Bin boxes, 4’’ waffle trays

Test Handler capability: Up to 280 indipendent sites (ping pong configuration), Per picker Handling technology, ≤ 1/10K jam rate, Compact footprint, Low index time, High throughput, Amagnetic pick-up and contacting units

Stimuli unit: Integrated on handler working area (ATE Head hard docking)

Production traceability feature available

Suitable for: Pressure senors, temperature sensors, GAS sensors, humidity sensors, waterproof pressure sensors, differential pressure sensors

Input/output media: Jedec trays, Tape and reel, direct die feeding

Bin Formats: Bin boxes, 4” waffle trays

Test Handler capability: Up to 280 indipendent sites (ping pong configuration), Active vacuum pressure control from 1 to 0 bar (g), Per picker Handling technology, ≤ 1/10K jam rate, Compact footprint, Low index time, High throughput

Temperature stimuli: Standard and automotive temperature range, High precision dynamic soak technology, up to 4°C/sec

Pressure stimuli: Pressure range: from 0 up to 2 bar (a), Fast settling time (up to 3 pre-pressurized tanks available as option), Configurable controller according to the accuracy required

GAS stimuli: Up to 4 GAS lines inlets, Supported Gases: CO2, Isobutilene, Hetanol, Methane, Automatic flushing procedure for Gas change, 2 Programmable working mode: Constant GAS Atmosphere, Pressurized GAS Atmosphere

Humidity stimuli: Range: 0…95% RH, Accuracy: ±4% RH , ±1% Flow, flow rate up to 10l/min, 2 Programmable working mode: Constant Humidity flow, Pressurized humid Atmosphere

Production traceability feature available

We are available for your questions or suggestions.
Please fill out the form below.

High Flexibility
High flexibility for different MEMS stimulus

Maximizing throughput
Conceived for maximizing throughput for
different MEMS response time

Scalable Multisite
Scalable Multisite available
x1, x4, x8, x16, x35, x70, x140

Fully sensorized
Fully sensorized heads for high
sensitivity pick/place

Optical camera
Optical camera for position check
and 2D code reading

Input/Output
Trolley for fast input/output
setup change
